Specially designed for control panels and enclosures, the FPF range of filter fan units offer:

• Compact sizes and low external profile
• Fast mounting thanks to plastic elastic hooks
• Integrated sealing gaskets for dust and water protection

Standard Specifications of Filter Fan Units:

• Mounting without screws in square openings, tolerance range of 1.5mm
• Possible fixing with V-shaped head screws (not supplied)
• Standard RAL 7035 colour
• Washable filter media supplied
• IP54 rated
• CSA approved
• Shielded ball bearing fans
• Suitable for operation at 60Hz
• 1.43kg
• Temperature Range -10 to +50

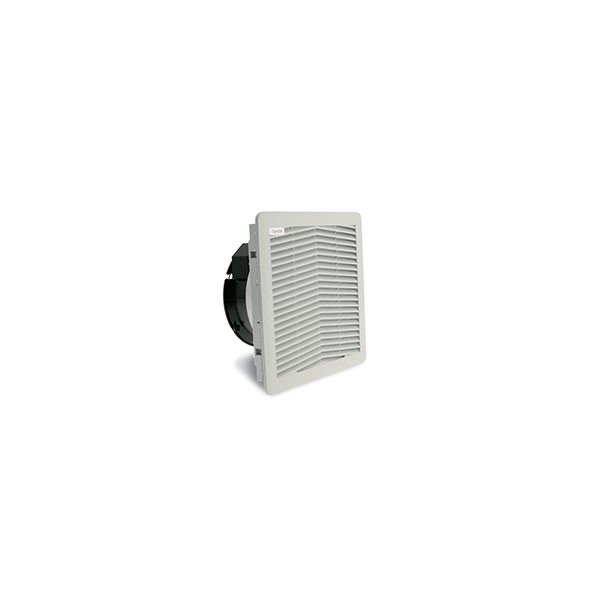

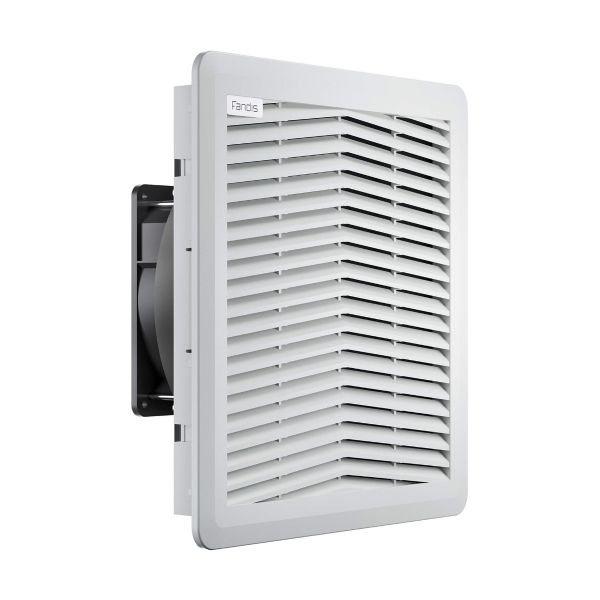

Dimensions of the FPF15KMU230BER-110:

Standard Filter Fan Size: 250mm (w) x 250mm (h) x 113mm (d)

The FPF15KMU230BER-110 delivers an efficient solution to climate control.The FPF15KMU230BER-110 is suitable for operation at both 50 and 60 Hz giving the unit a max airflow of 130/150 m3/h and can work within the temperature range of -10 to +50 Celsius. The FPF15KMU230BE-110 has UL approval according to UL 508 as well as CE and cURus. The filter fan unit can also come in IP55, 3R, Type 1 and EMC versions on request. The click fit mount feature comes as standard throughout the FPF range, this allows for fast mounting due to its elastic hooks. The filter fan unit IP54 and has an integrated sealing gasket in polyurethane foam for dust and water ingress protection. It is compact and has a plate thickness between 1.5 and 2.2mm. FPF15KMU230BER-110 can be fitted for a low external profile, or if more space inside the enclosure is needed an adaptor can be used giving the unit more internal space extending the filter fan units external profile. The filter media comes with G3 as standard but can be upgraded to G4 filter media upon request. The filter media in thermos-linked progressive structure synthetic fiber can be washed up to 10 times and reused. The FPF15KMU230BER-110 model uses shielded ball bearings and has a reverse airflow.

We recommend using FPF15 filter fans alongside the FPF15KUG-100 air inlet/exhaust to allow the air to move freely through the enclosure.
