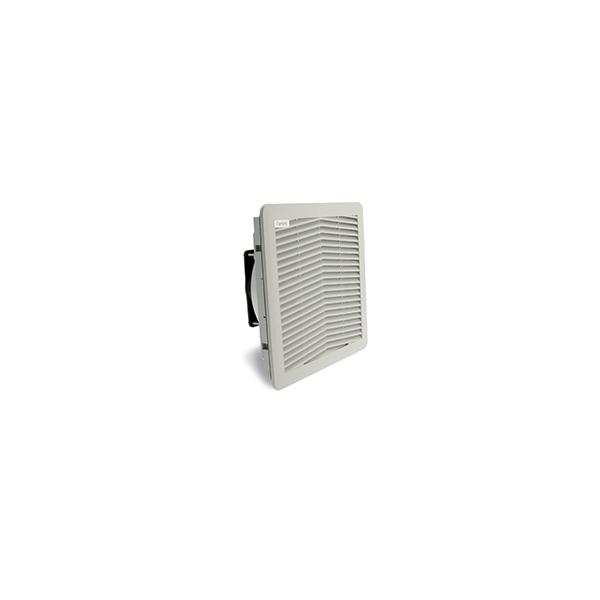

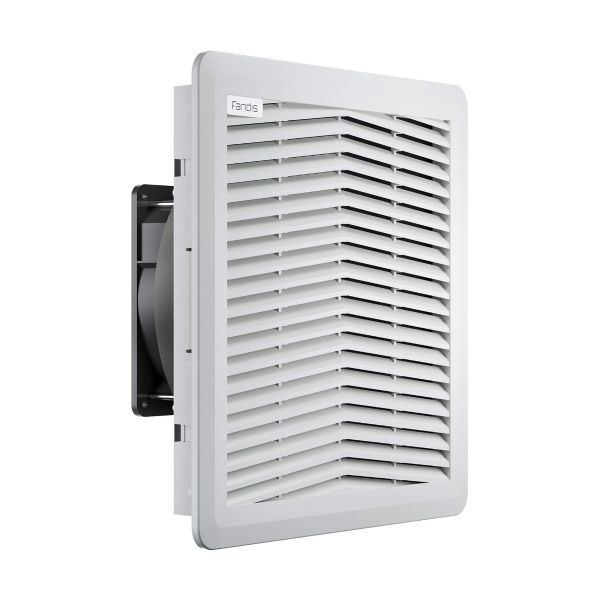

FPF15KPR115BER-110 Fandis Filter Fan Unit 115V AC 115m³/hr Reverse Airflow. Fits Cut Out 223x223mm. RAL 7035

FPF15KPR115BER-110 Fandis Filter Fan Unit 115V AC 115m³/hr Reverse Airflow. Fits Cut Out 223x223mm. RAL 7035

SKU
FPF15KPR115BER-110
Buy 20 for £78.05 each and save 5%
In Stock
View Downloads
SKU FPF15KPR115BER-110
Manufacturer FANDISEU
Voltage 115V.a.c
Cut Out Size 223x223mm
EMC Shielded No
Airflow Range (50Hz) 100 to 250m³/h
Max Air Flow (50Hz) 115(m³/h)
Airflow Direction Reverse (Blow Out)

Description

Specially designed for electronic cooling inside control panels and enclosures, the FPF range of filter fan units offer:

  • Compact sizes and low external profile
  • Fast mounting thanks to plastic elastic hooks
  • Integrated sealing gaskets for dust and water protection

Standard Specifications of Filter Fan Units:

  • Mounting without screws in square openings, tolerance range of 1.5mm
  • Possible fixing with V-shaped head screws (not supplied)
  • Standard RAL 7035 colour
  • Washable filter media supplied
  • IP54 rated
  • CSA approved
  • Shielded ball bearing fans
  • Suitable for operation at 60Hz
  • 0.5kg
  • Temperature Range -10 to +50

Dimensions of FPF15KPR115BER-110:

Standard Filter Fan Size: 250mm (w) x 250mm (h) x 100mm (d)



Dimension 250x250x100mm
Rated Voltage 115Va.c
Rated Power (50/60Hz) 20/18
Max Air Flow (m3/h) 115/125
Static Pressure (50/60Hz) 51/59
Noise (50/60Hz) (dB(A)) 46/50





We recommend using FPF15 filter fans alongside the FPF15KUG-100 air inlet/exhaust to allow the air to move freely through the enclosure.
