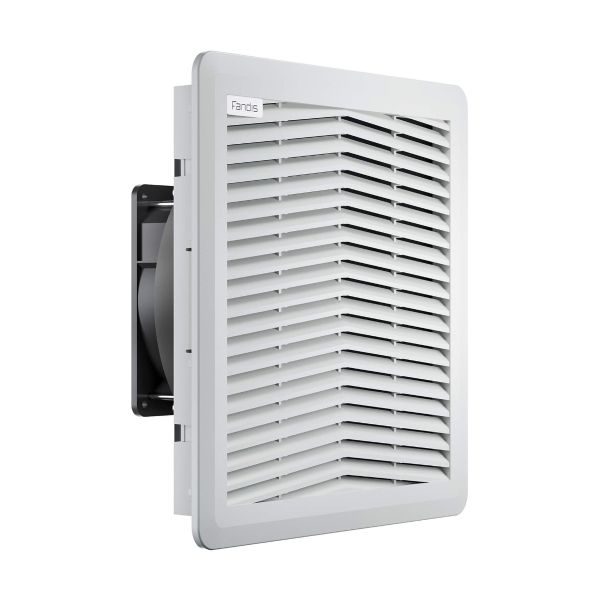

FPF15KPU115BER-110 Fandis Filter Fan Unit 115V AC 115m³/h Standard Airflow. Fits Cut Out 223x223mm. RAL 7035

FPF15KPU115BER-110 Fandis Filter Fan Unit 115V AC 115m³/h Standard Airflow. Fits Cut Out 223x223mm. RAL 7035

SKU
FPF15KPU115BER-110
Buy 10 for £73.39 each and save 5%
In Stock
View Downloads
SKU FPF15KPU115BER-110
Manufacturer FANDISEU
Voltage 115V.a.c
Cut Out Size 223x223mm
EMC Shielded No
Airflow Range (50Hz) 100 to 250m³/h
Max Air Flow (50Hz) 115(m³/h)
Airflow Direction Standard (Suck In)

Description

Specially designed for control panels and enclosures, the FPF range of filter fan units offer:

  • Compact sizes and low external profile
  • Fast mounting thanks to plastic elastic hooks
  • Integrated sealing gasketts for dust and water protection

Standard Specifications of Filter Fan Units:

  • Mounting without screws in square openings, tolerance range of 1.5mm
  • Possible fixing with V-shaped head screws (not supplied)
  • Standard RAL 7035 colour
  • Washable filter media supplied
  • IP54 rated
  • CSA approved
  • Shielded ball bearing fans
  • Suitable for operation at 60Hz
  • 1.39kg
  • Temperature Range -10 to +50

Dimensions of FPF15KPU115BE-110:

Standard Filter Fan Size: 250mm (w) x 250mm (h) x 113mm (d)

Filter Fan units deliver an efficient solution to climate control.The FPF15KPU115BE-110 is suitable for operation at  50 and 60 Hz giving the unit an airflow of 130/150 m3/h and can optimally function within the temperature range of -10 to +50 Celsius. The FPF15KPU115BE-110 has UL approval according to UL 508 as well as CE and cURus. The click fit mount feature is standard throughout the FPF range, this allows for fast mounting thanks to its plastic hooks. The filter fan unit is IP54 and has an integrated sealing gasket in polyurethane foam for dust and water ingress protection. It is compact and has a plate thickness between 1.5 and 2.2mm.  The filter fan unit can also come in IP55, 3R, Type 1 and EMC versions on request. FPF15KMU230BER-110 can be fitted for a low external profile, or if more space inside the enclosure is needed an adaptor can be used giving the unit more internal space extending the filter fan units external profile. The filter media provided is G3 as standard but can be upgraded to G4 filter media upon request. The filter media in thermos-linked progressive structure synthetic fiber can be washed up to 10 times and reused. The FPF15KPU115BE-110 model uses shielded ball bearings and has a standard airflow.



We recommend using FPF15 filter fans alongside the FPF15KUG-100 air inlet/exhaust to allow the air to move freely through the enclosure.
