TP19U230B Plastic Roof Exhaust Fan Unit 230V 500m³/h IP24 RAL 7035

TP19U230B Plastic Roof Exhaust Fan Unit 230V 500m³/h IP24 RAL 7035

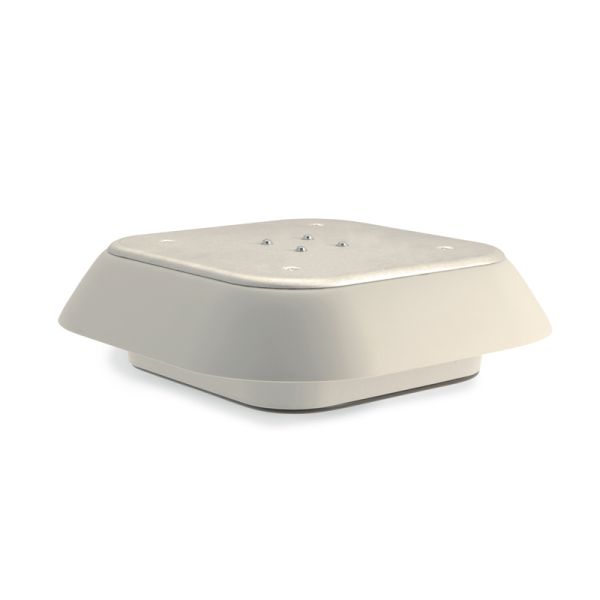

main product photo

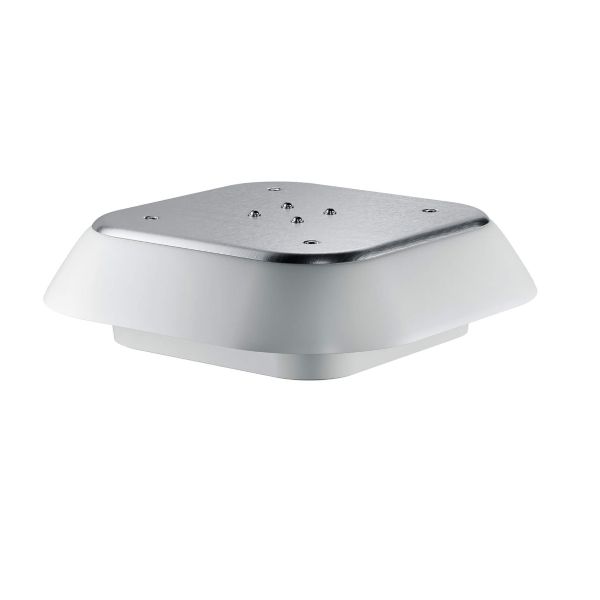

TP19U230B Plastic Roof Exhaust Fan Unit 230V 500m³/h IP24 RAL 7035 - 0

TP19U230B Plastic Roof Exhaust Fan Unit 230V 500m³/h IP24 RAL 7035

SKU

TP19U230B

Buy 5 for £165.39 each and save 5%

Quantity

In Stock

SKU	TP19U230B
Manufacturer	FANDISEU
Rated Voltage	230V.a.c
Max Air Flow (50Hz)	500(m³/h)
Roof Type	TP Series (Plastic)

Description

The 'TP' series of roof units from Axair is designed to disipate hot air extracted from the top of enclosures.

Key Features of the TP19U230B:

Aluminium (ABS) & Plastic (PC) casing
Adhesive sealing gasket supplied
IP24 Ingress Protection
Available in RAL 7035
Suitable for operation at 60Hz
230V 50Hz Frequency
Input Power: 78Watt
Current: 340mA
Max Airflow Point 1: 530m3/h
Max Airflow Point 2: 480m3/h
Max Pressure: 330Pa
Sound Level: 59 dB(A)
Weight: 2.0Kg
Temperature range: -10 to +60

Dimensions:

TP19U230B Roof Fan

We offer a full range of plastic roof fans including models TP19U115B, TP19U115B54, TP19U230B54 and TP19U230B55.

Request STEP File

Downloads
