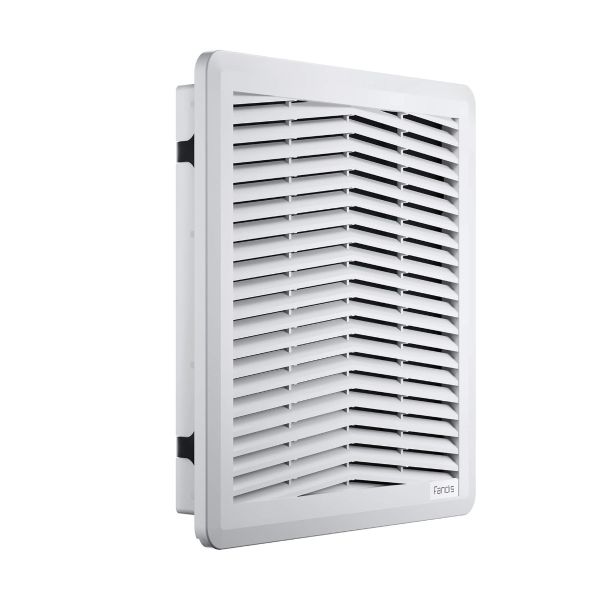

FF15U5 Fandis Exhaust Filter IP55 to Fit Cut Out 223x223mm. RAL 7035

FF15U5 Fandis Exhaust Filter IP55 to Fit Cut Out 223x223mm. RAL 7035

SKU
FF15U5
Buy 18 for £24.41 each and save 5%
Lead time variable - contact us on 01782 349 430
View Downloads
SKU FF15U5
Lead Times variable - contact us on 01782 349 430
Manufacturer FANDISEU
Cut Out Size 223x223mm
EMC Shielded No
IP Rating IP55

Description

Specially designed for electronic cooling inside control panels and enclosures, the FF series exhaust filter and filter fans feature a screwless connection with a fast tool-free mounting system. Available in a wide range of configurations for both indoor and outdoor use.



FF15U5 Exhaust Filter Technical data:


  • Mounting Wall Thickness 1.3-3.7 mm
  • Spare Parts Filter Media M15FPF
  • Casing Material PC/ABS UL94 V-0
  • RAL Number 7035
  • Filter Class ISO coarse 75% ISO 16890
  • Filter Class G4 EN 779
  • Filter Material thermo-linked progressive structure synthetic fibre
  • IP Protection Degree IP55
  • Operating Temperature -30÷60 °C
  • Storage Temperature -40÷70 °C
  • UL Ambient Temperature 60 °C


  • Dimensions of FF15U5:

    Standard Exhaust Filter Size: 250mm (w) x 250mm (h) x 25mm (d)


    The FF15U5 exhaust filter facilitates effective use of a filter fan unit when either delivering or exhausting air from an enclosure. Its Clip mounting system, for plates from 1 mm to 3.7 mm thick make for quick installation and ease of use when changing filters. The sliding opening of the cover of the FF Series filter fans means that no tools are required. EMC versions available on request.
