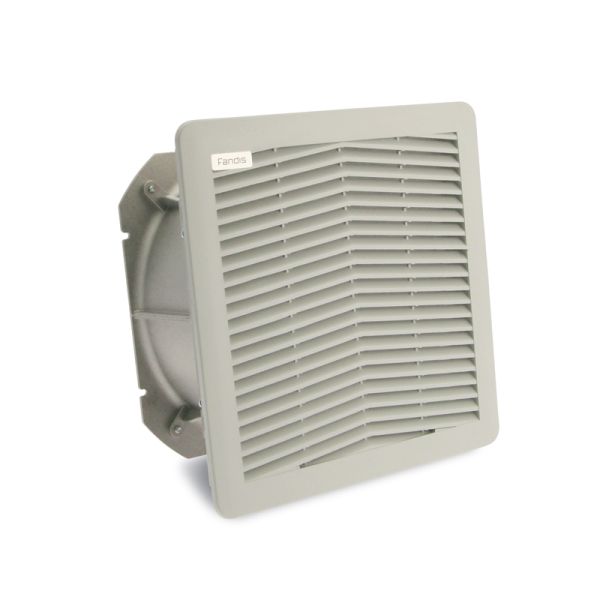

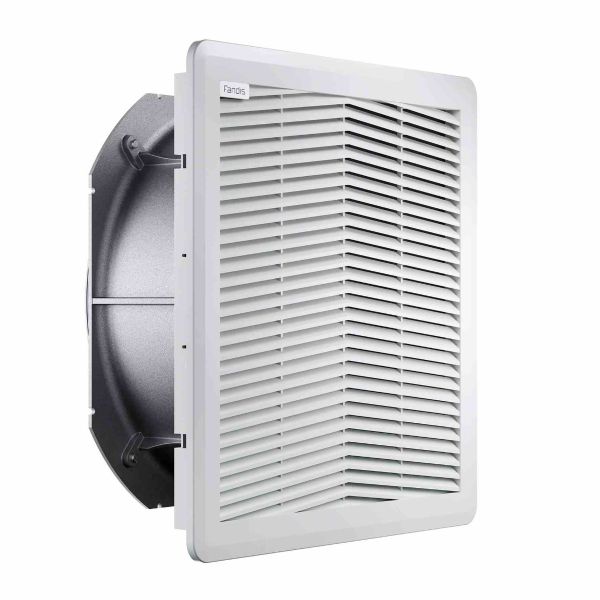

FPF15KEGU230BE-120 Fandis Filter Fan Unit 230V AC 360m³/h Standard Flow. Fits Cut Out 223x223mm. RAL 7035

FPF15KEGU230BE-120 Fandis Filter Fan Unit 230V AC 360m³/h Standard Flow. Fits Cut Out 223x223mm. RAL 7035

SKU
FPF15KEGU230BE-120
Buy 10 for £114.48 each and save 5%
In Stock
View Downloads
SKU FPF15KEGU230BE-120
Manufacturer FANDISEU
Voltage 230V.a.c
Cut Out Size 223x223mm
EMC Shielded No
Airflow Range (50Hz) 250 to 500m³/h
Max Air Flow (50Hz) 360(m³/h)
Airflow Direction Standard (Suck In)

Description

Specially designed for electronic cooling inside control panels and enclosures, the FPF range of filter fan units offer:

  • Compact sizes and low external profile
  • Fast mounting thanks to plastic elastic hooks
  • Integrated sealing gaskets for dust and water protection

Standard Specifications of Filter Fan Units:

  • Mounting without screws in square openings, tolerance range of 1.5mm
  • Possible fixing with V-shaped head screws (not supplied)
  • Standard RAL 7035 colour
  • Washable filter media supplied
  • IP54 rated
  • CSA approved
  • Shielded ball bearing fans
  • Suitable for operation at 60Hz
  • 0.5kg
  • Temperature Range -10 to +40

Dimensions of FPF15KEGU230BE-120:

Standard Filter Fan Size: 250mm (w) x 250mm (h) x 114mm (d)



Dimension 250x250x114mm
Rated Voltage 230Va.c
Rated Power (50/60Hz) 68/82
Max Air Flow (m3/h) 360/400
Static Pressure (50/60Hz) 160/180
Noise (50/60Hz) (dB(A)) 61/63
