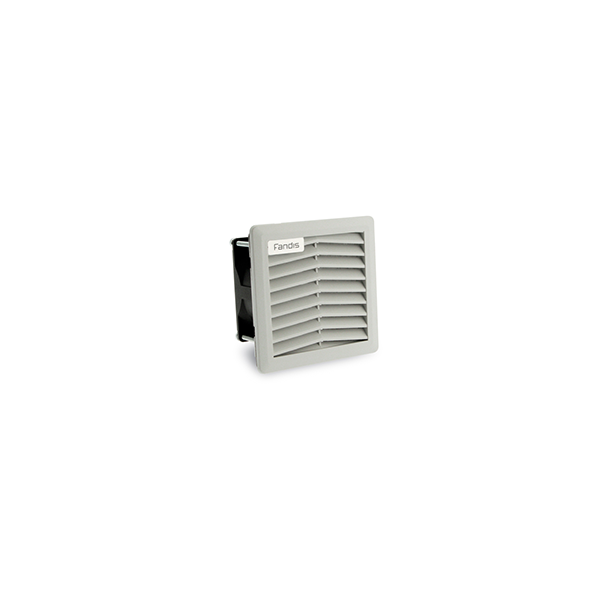

FPF08KU230B-110. Fandis Filter Fan Unit 230V 23m³/h Standard Airflow. Fits Cut Out 92x92mm

FPF08KU230B-110. Fandis Filter Fan Unit 230V 23m³/h Standard Airflow. Fits Cut Out 92x92mm

FPF08KU230B-110 Fandis Filter Fan Unit, 230V, 23m³/h, Reverse Airflow, RAL 7035, Outer Dims: 105x105mm, Fits Cut Out: 92x92mm, IP54, G3 Media, -10 ~ +50°C Rated Temp Range

In stock

SKU FPF08KU230B-110
  • Buy 16 for £30.25 each and save 5%

Description / FPF08KU230B-110. Fandis Filter Fan Unit 230V 23m³/h Standard Airflow. Fits Cut Out 92x92mm

Specially designed for control panels and enclosures, the FPF range of filter fan units offer:

  • Compact sizes and low external profile
  • Fast mounting thanks to plastic elastic hooks
  • Integrated sealing gaskets for dust and water protection

Standard Specifications of Filter Fan Units:

  • Mounting without screws in square openings, tolerance range of 1.5mm
  • Possible fixing with V-shaped head screws (not supplied)
  • Standard RAL 7035 colour
  • Washable filter media supplied
  • IP54 rated
  • CSA approved
  • Shielded ball bearing fans
  • Suitable for operation at 60Hz
  • 0.5kg
  • Temperature Range -10 to +50

Dimensions of FPF08KU230B-110:

Standard Filter Fan Size: 105mm (w) x 105mm (h) x 67mm (d)

The FPF08KU230B-110 is a great solution to thermal management. This filter fan unit is the standard airflow version of this model and is IP54. This is down to its polyurethane foam permanent sealing gasket .IP55 is available on request as well as an EMC version, Type1, and 3R. Its compact, low profile side mount can be amended using an adaptor. It can sit flat to the enclosure with the unit encased in the cabinet or, alternatively, pushed out  by using an adaptor to extend its external profile providing more space inside the enclosure. Fitting the FPF08KU230B-110 with or without an adaptor is simple as it features click fit mounting allowing for easy, fast installation. G3 filter media is provided as standard in the FPF08KU230B-110 however G4 media is available on request. All our filter medias are reusable. They can be reused by washing,  lightly beating and blow drying  and can be washed up to 10 times. This fan filter unit contains shielded ball bearings. The filter fan unit comes with a plate thickness of between 1.5 and 2.2mm and the plastic parts are made from ABS and PC alloy. The FPF08KU230B-110 is CE, cURus and CSA approved as well as UL approvaed according to UL 508.

Dimension 105x105x67mm
Rated Voltage 230Va.c
Rated Power (50/60Hz) 10.0/8.0
Max Air Flow (m3/h) 23/30
Static Pressure (50/60Hz) 42/62
Noise (50/60Hz) (dB(A)) 33.0/38.0
Bearing Type Ball



View the datasheet



We recommend using this filter fan alongside the FPF08KUG-100 air inlet/exhaust to allow the air to move freely through the enclosure.



More Information

Product NumberFANDISEU
Cut Out Size92x92mm
Max Air Flow (50Hz)23(m³/h)
Airflow DirectionStandard (Suck In)
