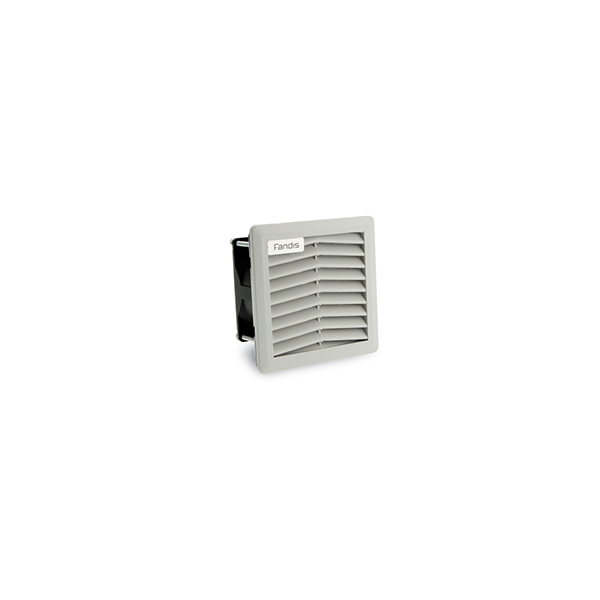

FPF08KUD24B-110 Fandis Filter Fan Unit, 24v dc, 28m³/h, Standard Airflow, RAL 7035, Outer Dims: 105x105mm, Fits Cut Out: 92x92mm, IP54, G3 Media, -10 ~ +50°C Rated Temp Range
SKU FPF08KUD24B-110
  • Buy 16 for £34.15 each and save 5%

Description / FPF08KUD24B-110. Fandis Filter Fan Unit 24Vd.c 28m³/h Standard Airflow. Fits Cut Out 92x92mm

Specially designed for control panels and enclosures, the FPF range of filter fan units offer:

  • Compact sizes and low external profile
  • Fast mounting thanks to plastic elastic hooks
  • Integrated sealing gaskets for dust and water protection

Standard Specifications of Filter Fan Units:

  • Mounting without screws in square openings, tolerance range of 1.5mm
  • Possible fixing with V-shaped head screws (not supplied)
  • Standard RAL 7035 colour
  • Washable filter media supplied
  • IP54 rated
  • CSA approved
  • Shielded ball bearing fans
  • Suitable for operation at 60Hz
  • 0.30kg
  • Temperature Range -10 to +50

Dimensions of the FPF08KUD24B-110:

Standard Filter Fan Size: 105mm (w) x 105mm (h) x 67mm (d)

Filter fan units are a great solution to cabinet cooling. The FPF08KUD24B-110, which is the standard airflow version of this model, is IP54. This is due to its permanent sealing gasket in polyurethane foam.IP55 is available on request as well as an EMC version,3R and Type1. Its compact, low profile side mount can be modified using an adaptor. It can sit flush to the cabinet with the unit fully inside the enclosure or, alternatively, pushed out slightly by using an adaptor to extend its external profile allowing for more space inside the enclosure. Fitting the FPF08KUD24B-110 with or without an adaptor is easy as it features click fit mounting allowing for easy, fast installation. G3 filter media comes as standard in the FPF08KUD24B-110 however G4 media is available on request. All our filter medias are reusable. They can be reused by washing, blow drying and lightly beating. They can be washed up to 10 times. The FPF08KUD24B-110 working temperature range is -10 to +70 degrees. The filter fan unit comes with a plate thickness of between 1.5 and 2.2mm and the plastic parts are made from ABS and PC alloy. The FPF08KUD24B-110 has UL approval according to UL 508 as well as CE, cURus.  This filter fan unit contains shielded ball bearings.



Dimension 105x105x67mm
Rated Voltage 24Va.c
Rated Power (50/60Hz) 3.6
Max Air Flow (m3/h) 15
Static Pressure (50/60Hz) 24
Noise (50/60Hz) (dB(A)) 32.5
Bearing Type Ball



View the datasheet



We recommend using this filter fan alongside the FPF08KUG-100 air inlet/exhaust to allow the air to move freely through the enclosure.



More Information

Product NumberFANDISEU
Cut Out Size92x92mm
Max Air Flow (50Hz)28(m³/h)
Airflow DirectionStandard (Suck In)
