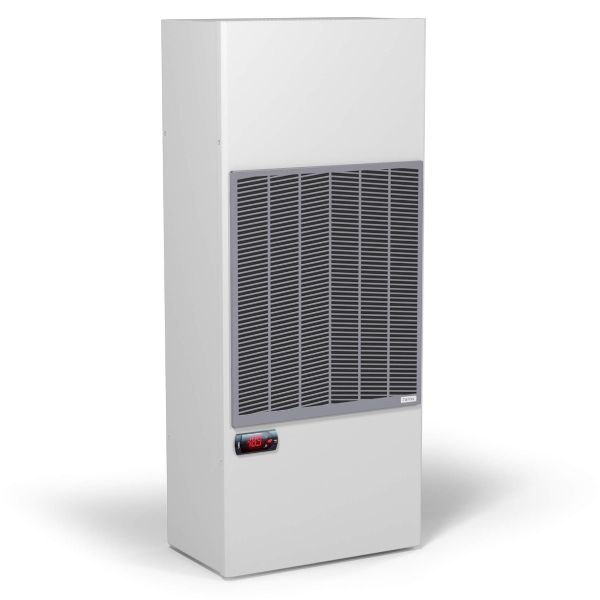

CCU08A231WNIUX Wall Mounted Enclosure Cooling Unit

Name: CCU08A231WNIUX Wall Mounted Enclosure Cooling Unit
SKU: CCU-3
Price: 1430.97 GBP
Availability: InStock

CCU08A231WNIUX Wall Mounted Enclosure Cooling Unit

SKU

CCU-3

Quantity

Lead time variable - contact us on 01782 349 430

View Downloads

SKU	CCU-3
Lead Times	variable - contact us on 01782 349 430
Rated Voltage	230V.a.c
Phase	1~
Watts	800W

Description

CCU08A231WNIUX wall mounted cooling units provide the ideal solution for cooling electrical panels in high external temperatures, isolating them from the surrounding environment. They are suitable for indoor and outdoor applications, ensuring high technical and safety standards are met.

Technical Data:

Cooling Capacity L35L35	855/935 (W)
	2917/3190 (BTU/hr)
Cooling Capacity L35L50	685/715 (W)
	2337/2440 (BTU/hr)
Rated Voltage	230 (V a.c.)
Rated Current A	2.9/3.2
Rated Power L35L35	395/455 (W)
Rated Power L35L50	445/535 (W)
Max Current	17 (A)
Fuse T	4 (A)
Casing Material	Painted Steel
RAL Number	7035
Electrical Connection	Connector
Refrigerant Number	R134a
Refrigerant Charge	230
Maximum Allowable Pressure	HP 2.4/LP 0.6 (MPa)
IP Rating	IP54
Operating Temperature	20-50 °C
