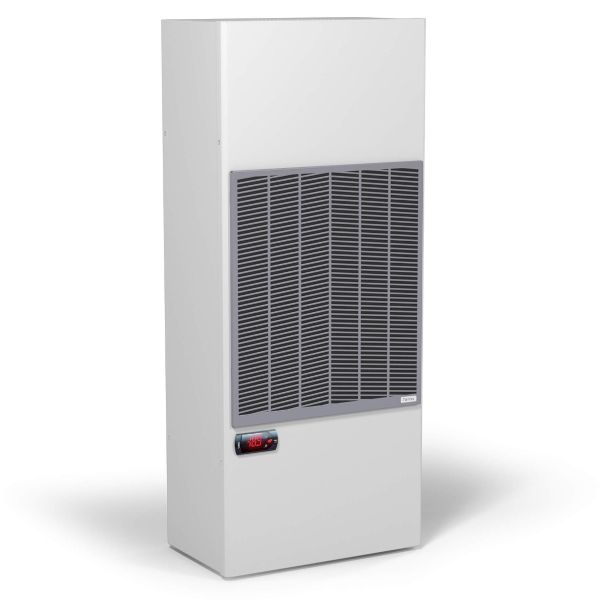

CCU40A403WSIUX Wall Mounted Enclosure Cooling Unit

Name: CCU40A403WSIUX Wall Mounted Enclosure Cooling Unit
SKU: CCU-11
Price: 4335.52 GBP
Availability: InStock

CCU40A403WSIUX Wall Mounted Enclosure Cooling Unit

SKU

CCU-11

Quantity

Lead time variable - contact us on 01782 349 430

View Downloads

SKU	CCU-11
Lead Times	variable - contact us on 01782 349 430
Rated Voltage	380-400V.a.c
Phase	3~
Watts	4000W

Description

CCU40A403WSIUX wall-mounted cooling units, available from Axair Online, are suitable for cooling electrical panels in high external temperatures, ensuring technical and safety standards are met.

Technical Data:

Cooling Capacity L35L35	3845/4035 (W)
	13120/13768 (BTU/hr)
Cooling Capacity L35L50	2845/2995 (W)
	9708/10219 (BTU/hr)
Rated Voltage 3~ at 60 Hz	440/460/480 (V a.c.)
Rated Voltage 3~ at 50 Hz	380/400 (V a.c.)
Rated Current at 480 V a.c. 3~ 60Hz	3.1 (A)
Rated Current at 460 V a.c. 3~ 60Hz	3.3 (A)
Rated Current at 440 V a.c. 3~ 60Hz	3.4 (A)
Rated Current at 400 V a.c. 3~ 50Hz	3.3 (A)
Rated Current at 380 V a.c. 3~ 50Hz	3.5 (A)
Rated Power L35L35	1795/1995 (W)
Rated Power L35L50	2115/2495 (W)
Max Current	15 (A)
Fuse T	8 (A)
Casing Material	Painted Steel
RAL Number	7035
Electrical Connection	Connector
Refrigerant Number	R134a
Refrigerant Charge	640
Maximum Allowable Pressure	HP 2.4/LP 0.6 (MPa)
IP Rating	IP54
Operating Temperature	20-50 °C
