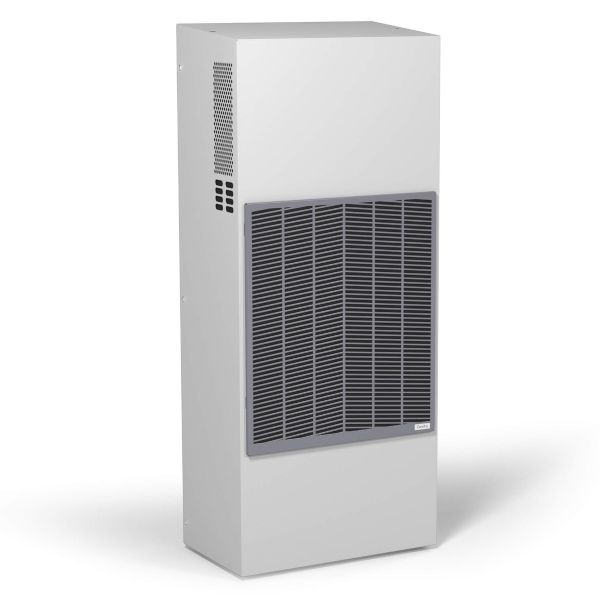

CCU40A403WNOUX Wall Mounted Enclosure Cooling Units
SKU
CCU40A403WNOUX Wall Mounted Cooling Units
£4,378.82
Lead time variable - contact us on 01782 349 430
| SKU | CCU40A403WNOUX Wall Mounted Cooling Units |
|---|---|
| Lead Times | variable - contact us on 01782 349 430 |
| Voltage | 400V |
| Phase | Three Phase |
| Watts | 4000W |
Description
CCU40A403WNOUX wall mounted cooling units wall mounted cooling units, available from Axair Online, are suitable for cooling electrical panels in high external temperatures, ensuring technical and safety standards are met.
Technical Data:
| Cooling Capacity L35L35 | 3995/4195 (W) |
| 13632/14314 (BTU/hr) | |
| Cooling Capacity L35L50 | 2995/3145 (W) |
| 10219/10731 (BTU/hr) | |
| Rated Voltage | 440/460/480 (V a.c.) |
| Rated Voltage 3~ at 50 Hz | 380/400 (V a.c.) |
| Rated Current at 480 V a.c. 3~ 60 Hz | 3.1 (A) |
| Rated Current at 460 V a.c. 3~ 60 Hz | 3.3 (A) |
| Rated Current at 440 V a.c. 3~ 60 Hz | 3.4 (A) |
| Rated Current at 400 V a.c. 3~ 50 Hz | 3.3 (A) |
| Rated Current at 380 V a.c. 3~ 50 Hz | 3.5 (A) |
| Rated Power L35L35 | 1845/2045 (W) |
| Rated Power L35L50 | 2165/2545 (W) |
| Max Current | 15 (A) |
| Fuse T | 8 (A) |
| Casing Material | Painted Steel |
| RAL Number | 7035 |
| Electrical Connection | Connector |
| Refrigerant Number | R134a |
| Refrigerant Charge | 850 |
| Maximum Allowable Pressure | HP 2.4/LP 0.6 (MPa) |
| IP Rating | IP54 |
| Operating Temperature | 20-50 °C |
