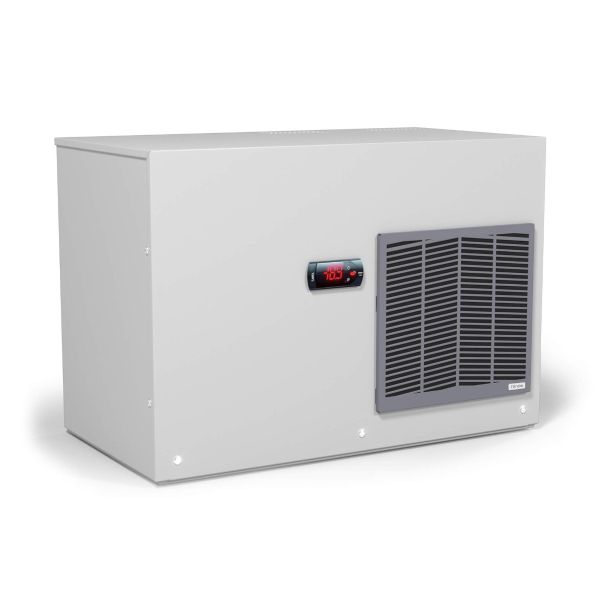

CCU20A402RNIUX Roof Mounted Enclosure Cooling Unit
SKU
CCU-18
£3,134.31
Lead time variable - contact us on 01782 349 430
| SKU | CCU-18 |
|---|---|
| Lead Times | variable - contact us on 01782 349 430 |
| Voltage | 400V |
| Phase | Bi-Phases |
| Watts | 2000W |
Description
CCU20A402RNIUX roof mounted cooling units provide an ideal solution for cooling battery electrical panels or when accessibility or space are limited, ensuring technical and safety standards are met.
Technical Data:
| Cooling Capacity L35L35 | 1955/2145 (W) |
| 6671/7319 (BTU/hr) | |
| Cooling Capacity L35L50 | 1565/1635 (W) |
| 5340/5579 (BTU/hr) | |
| Rated Voltage | 380/400/440/460/480 (V a.c.) |
| Rated Current at 480 V a.c. 2~ | 2.9/3.2 (A) |
| Rated Current at 460 V a.c. 2~ | 3/3.4 (A) |
| Rated Current at 440 V a.c. 2~ | 3.1/3.5 (A) |
| Rated Current at 400 V a.c. 2~ | 3.4/3.8 (A) |
| Rated Current at 380 V a.c. 2~ | 3.6/4 (A) |
| Rated Power L35L35 | 925/1065 (W) |
| Rated Power L35L50 | 1075/1295 (W) |
| Max Current | 17 (A) |
| Fuse T | 10 (A) |
| Casing Material | Painted Steel |
| RAL Number | 7035 |
| Electrical Connection | Connector |
| Refrigerant Number | R134a |
| Refrigerant Charge | 680 |
| Maximum Allowable Pressure | HP 2.4/LP 0.6 (MPa) |
| IP Rating | IP54 |
| Operating Temperature | 20-50 °C |
