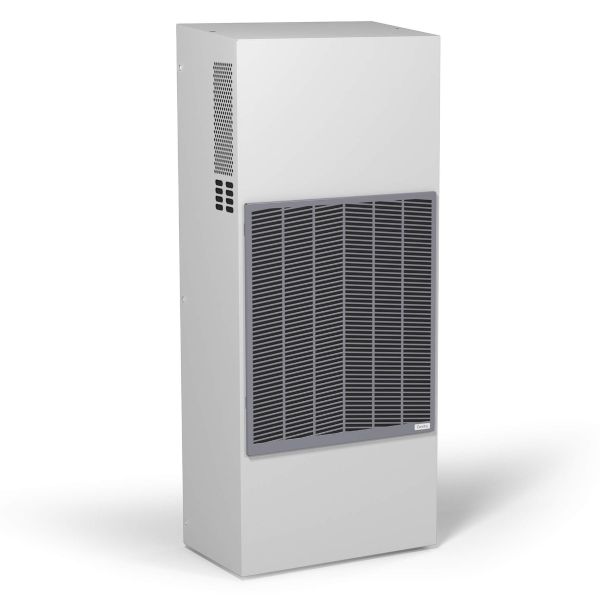

CCU15A231WNOUX Wall Mounted Enclosure Cooling Unit
SKU
CCU-16
£2,252.17
Lead time variable - contact us on 01782 349 430
| SKU | CCU-16 |
|---|---|
| Lead Times | variable - contact us on 01782 349 430 |
| Voltage | 230V |
| Phase | Single Phase |
| Watts | 1500W |
Description
CCU15A231WNOUX wall mounted cooling units, available from Axair Online, are suitable for cooling electrical panels in high external temperatures, ensuring technical and safety standards are met.
Technical Data:
| Cooling Capacity L35L35 | 1415/1555 (W) |
| 4828/5306 BTU/hr | |
| Cooling Capacity L35L50 | 1135/1185 (W) |
| 3873/4043 BTU/hr | |
| Rated Voltage | 230 (V a.c.) |
| Rated Current | 5.2/5.8 (A) |
| Rated Power L35L35 | 655/755 (W) |
| Rated Power L35L50 | 755/915 (W) |
| Max Current | 24 (A) |
| Fuse T | 8 (A) |
| Casing Material | Painted Steel |
| RAL Number | 7035 |
| Electrical Connection | Connector |
| Refrigerant Number | R134a |
| Refrigerant Charge | 330 |
| Maximum Allowable Pressure | HP 2.4/LP 0.6 (MPa) |
| IP Rating | IP55 |
| Operating Temperature | 20-50 °C |
