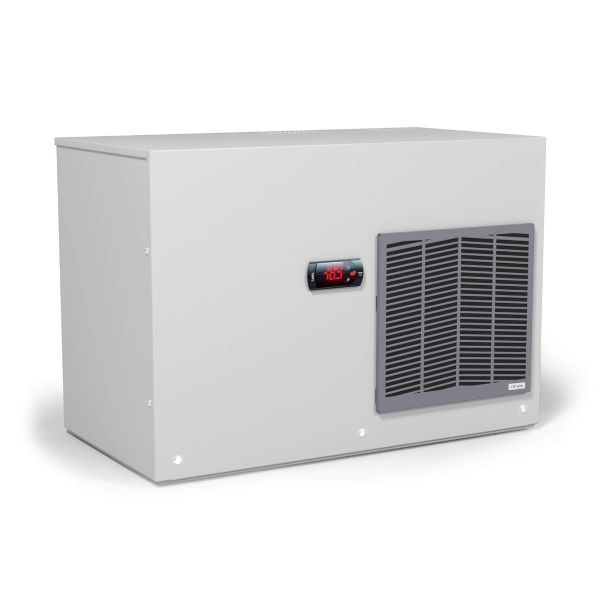

CCU09A231RNIUX Roof Mounted Enclosure Cooling Unit
SKU
CCU-12
£1,878.29
Lead time variable - contact us on 01782 349 430
| SKU | CCU-12 |
|---|---|
| Lead Times | variable - contact us on 01782 349 430 |
| Voltage | 230V |
| Phase | Single Phase |
| Watts | 900W |
Description
CCU09A231RNIUX roof mounted cooling units, available from Axair Online, are ideal for cooling battery electrical panels or when accessibility or space are limited, ensuring technical and safety standards are met.
Technical Data:
| Cooling Capacity L35L35 | 975/1075 (W) |
| 3327/3668 BTU/hr | |
| Cooling Capacity L35L50 | 795/815 (W) |
| 2713/2781 BTU/hr | |
| Rated Voltage | 230 (V a.c.) |
| Rated Current | 4.2/4.6 (A) |
| Rated Power L35L35 | 445/525 (W) |
| Rated Power L35L50 | 495/595 (W) |
| Max Current | 20 (A) |
| Fuse T | 8 A) |
| Casing Material | Painted Steel |
| RAL Number | 7035 |
| Electrical Connection | Connector |
| Refrigerant Number | R134a |
| Refrigerant Charge | 210 |
| Maximum Allowable Pressure | HP 2.4/LP 0.6 (MPa) |
| IP Rating | IP54 |
| Operating Temperature | 20-50 °C |
