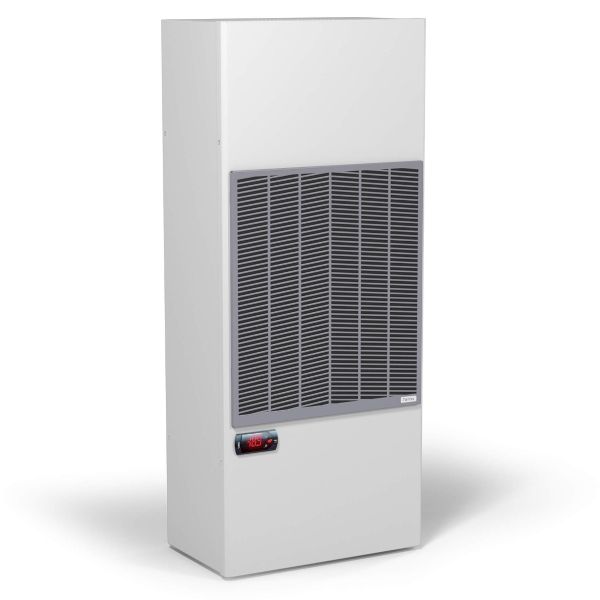

CCU20A402WNIUX Wall Mounted Enclosure Cooling Unit

Name: CCU20A402WNIUX Wall Mounted Enclosure Cooling Unit
SKU: CCU-9
Price: 2887.96 GBP
Availability: InStock

CCU20A402WNIUX Wall Mounted Enclosure Cooling Unit

SKU

CCU-9

Quantity

Lead time variable - contact us on 01782 349 430

View Downloads

SKU	CCU-9
Lead Times	variable - contact us on 01782 349 430
Rated Voltage	380-480V.a.c
Phase	Bi-Phase
Watts	2000W

Description

CCU20A402WNIUX wall mounted cooling units, available from Axair Online, are suitable for cooling electrical panels in high external temperatures, ensuring technical and safety standards are met.

Technical Data:

Cooling Capacity L35L35	1955/2145 (W)
	6671/7319 (BTU/hr)
Cooling Capacity L35L50	1565/1635 (W)
	5340/5579 (BTU/hr)
Rated Voltage	380/400/440/460/480 (V a.c.)
Rated Current at 480 V a.c. 2~	2.9/3.2 (A)
Rated Current at 460 V a.c. 2~	3/3.4 (A)
Rated Current at 440 V a.c. 2~	3.1/3.5 (A)
Rated Current at 400 V a.c. 2~	3.4/3.8 (A)
Rated Current at 380 V a.c. 2~	3.6/4 (A)
Rated Power L35L35	925/1065 (W)
Rated Power L35L50	1075/1295 (W)
Max Current	17 (A)
Fuse T	10 (A)
Casing Material	Painted Steel
RAL Number	7035
Electrical Connection	Connector
Refrigerant Number	R134a
Refrigerant Charge	680
Maximum Allowable Pressure	HP 2.4/LP 0.6 (MPa)
IP Rating	IP54
Operating Temperature	20-50 °C
