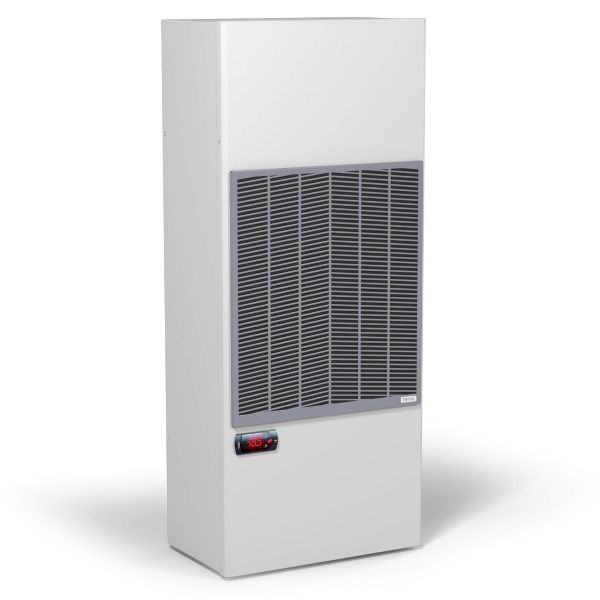

CCU08A402WNIUX Wall Mounted Enclosure Cooling Unit
SKU
CCU-4
£1,638.98
Lead time variable - contact us on 01782 349 430
| SKU | CCU-4 |
|---|---|
| Lead Times | variable - contact us on 01782 349 430 |
| Voltage | 400V |
| Phase | Bi-Phases |
| Watts | 800W |
Description
The CCU series of wall mounted cooling units available from axair online, provide effective cooling for electrical panels in high external temperatures, ensuring high technical and safety standards are met. They are suitable for both indoor and outdoor applications.
Technical Data:
| Cooling Capacity L35L35 | 825/895 (W) |
| 2815/3054 (BTU/hr) | |
| Cooling Capacity L35L50 | 645/685 (W) |
| 2201/2337 (BTU/hr) | |
| Rated Voltage V a.c. | 380/400/440/460/480 |
| Rated Current at 480 V a.c. 2~ | 1.5/1.6 (A) |
| Rated Current at 460 V a.c. 2~ | 1.5/1.7 (A) |
| Rated Current at 440 V a.c. 2~ | 1.6/1.8 (A) |
| Rated Current at 400 V a.c. 2~ | 1.7/1.9 (A) |
| Rated Current at 380 V a.c. 2~ | 1.8/2 (A) |
| Rated Power L35L35 | 395/455 (W) |
| Rated Power L35L50 | 445/535 (W) |
| Max Current | 9 (A) |
| Fuse T | 6 (A) |
| Casing Material | Painted Steel |
| RAL Number | 7035 |
| Electrical Connection | Connector |
| Refrigerant Number | R134a |
| Refrigerant Charge | 230 |
| Maximum Allowable Pressure | HP 2.4/LP 0.6 (MPa) |
| IP Rating | IP54 |
| Operating Temperature | 20-50 °C |
