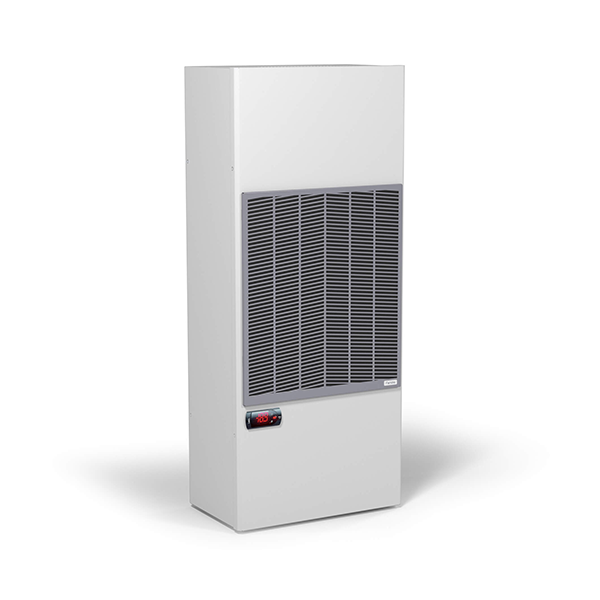

CCU03A231WNIUX Wall Mounted Enclosure Cooling Unit
SKU
CCU-1
£1,298.94
Lead time variable - contact us on 01782 349 430
| SKU | CCU-1 |
|---|---|
| Lead Times | variable - contact us on 01782 349 430 |
| Voltage | 230V |
| Phase | Single Phase |
| Watts | 300W |
Description
CCU03A231WNIUX wall mounted cooling units provide the ideal solution for cooling electrical panels in high external temperatures, isolating them from the surrounding environment. They are suitable for indoor and outdoor applications, ensuring high technical and safety standards are met.
Technical Data:
| Rated Voltage (V a.c.) | 230 |
| Rated Current (A) | 1.3/1.5 |
| Rated Power L35L35 (W) | 185/215 |
| Rated Power L35L50 (W) | 215/265 |
| Max Current (A) | 9 |
| Fuse T (A) | 2 |
| Casing Material | Painted Steel |
| RAL Number | 7035 |
| Electrical Connection | Connector |
| Refrigerant Number | R134a |
| Refrigerant Charge | 130 |
| Maximum Allowable Pressure (MPa) | HP 2.4/LP 0.6 |
| IP Rating | IP54 |
| Operating Temperature | 20-50 °C |
